Develon

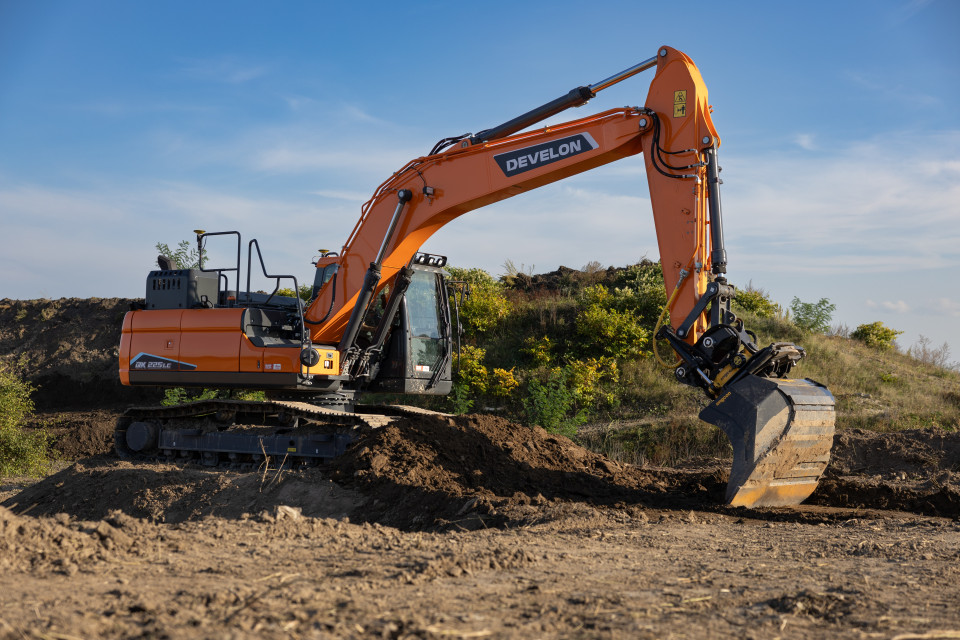

DX225LC-7

The DX225LC-7 measures up in the 22-tonne class. The advanced and quiet cab offers the best comfort in this class. The well-known Develon 6 cIlinder DL06 engine guarantees fuel economy!

REQUEST A QUOTE Brochure downloaden

Maximum vermogen

174 pk

Bedrijfsgewicht

23.3 t

Inhoud laadbak

1.28 m3

Emissienorm

Stage V

TECHNICAL DATA

Motor
Develon DL06V
Gewicht
24.200 kg
Aantal cilinders
6
Nominaal vermogen bij 1900 tpm
174 pk
Max. koppel bij 1400 rpm
820 Nm
Stationair (laag - hoog)
800 [±20] - 1900 [+25/-50] rpm
Cilinderinhoud
5890 cm3
Boring × slag
100 mm × 125 mm
Startmotor
24 V × 6 kW
Accu's, dynamo
2 × 12 V, 100 Ah - 24 V, 100 Ah
Luchtfilter
Luchtfilter met dubbel element en Turbo stofafscheider met voorfilter
A-gewogen geluidsdrukniveau bij de bestuurder
71 dB
